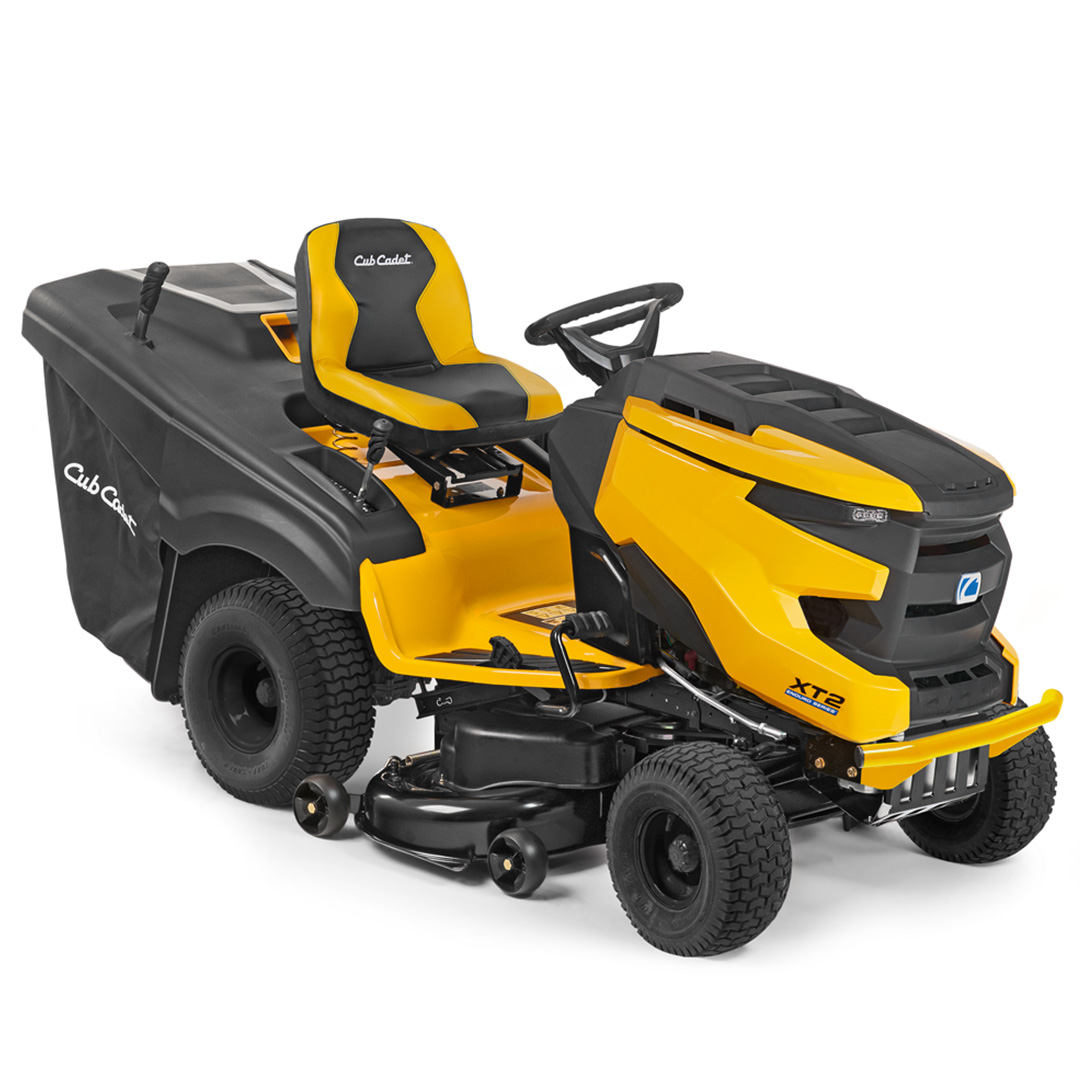

1023 XT2

RRP $10,499.00

The Cub Cadet 1023 XT2 is the ultimate catching machine designed for Kiwis with big lifestyle sections. With a 42” deck and powered by a 23hp Kawasaki V-twin OHV engine, the Cub Cadet 1023 has power, comfort, precision, and control for the ultimate mowing experience.

Drive it. We Dare you.

  • 21.5HP Kawasaki V-Twin Engine
  • Hydro Drive System
  • 42″ / 106cm Cut
  • Twin Blade
  • 2 Year Warranty
Find a Dealer

SKU: MT13AFA1TR603 Category:


The ultimate grass-catching machine designed for New Zealanders with lifestyle blocks is the Cub Cadet 1023 XT2. This powerful mower features a 42″ Robotically Welded Steel Deck and is driven by a 21.5HP Kawasaki V-twin OHV engine, ensuring exceptional power, comfort, precision, and control for an unparalleled mowing and catching experience.

With a 2-year warranty, the Cub Cadet 1023 XT2 measures 110cm in width, 118cm in height, and 250cm in length. Its engine model is a 21.5HP Kawasaki V-Twin Engine with a CC rating of 726 and an electric start system. The fuel tank has a capacity of 11.4L and is compatible with unleaded petrol.

For your convenience, the mower offers a 12-position height adjustment ranging from 25mm to 100mm, allowing you to adapt to various grass lengths. Additional features include a High Back Comfort Seat, Cruise Control, SmartJet™ Deck Washing System, RevTEK™ Reverse Mowing Technology, LED Headlights, and a Front Bumper.

The Cub Cadet 1023 XT2 comes with a 320-liter catcher equipped with an easy manual lever for efficient grass collection. While there are no wash ports, the Pressed Steel Deck with a width of 106cm (42″) ensures reliable performance. The drive system is Foot-Operated Hydrostatic, and the mower utilizes a Non-Timed Twin Blade System with an Electronic PTO Clutch. It can achieve a speed of 8.4km/h and has a turning radius of 40cm (16″), providing excellent maneuverability.

Additional information

Weight 253 kg
Dimensions 250 × 110 × 118 cm
PTO Clutch Electronic
Warranty 2 Year
Engine Model 21.5HP Kawasaki V-Twin Engine
CC Rating 726
Start System Electric
Blades Non-Timed Twin Blade System
Turning Radius 40cm/16"
Speed 8.4 km/h
Fuel Tank Size 11.4 L
Additional Features Cruise Control, Front Bumper, High Back Comfort Seat, LED Headlights
Maximum Slope Gradient Up To 15 Degrees
Tow Hitch No
Catcher Kits - Side Discharge No
Drive System Foot-Operated Hydrostatic
Deck Construction Pressed Steel
Mulch Function No
Power Petrol
Cutting Width 42 Inch
Cutting Height Range 12 Position Height Adjustment 25-100 mm
Catcher Size 320 Litres With Easy Manual Lever
Spec Sheets Download
Operating Manuals Download
Specs Sheet Download
Operating Manuals Download
