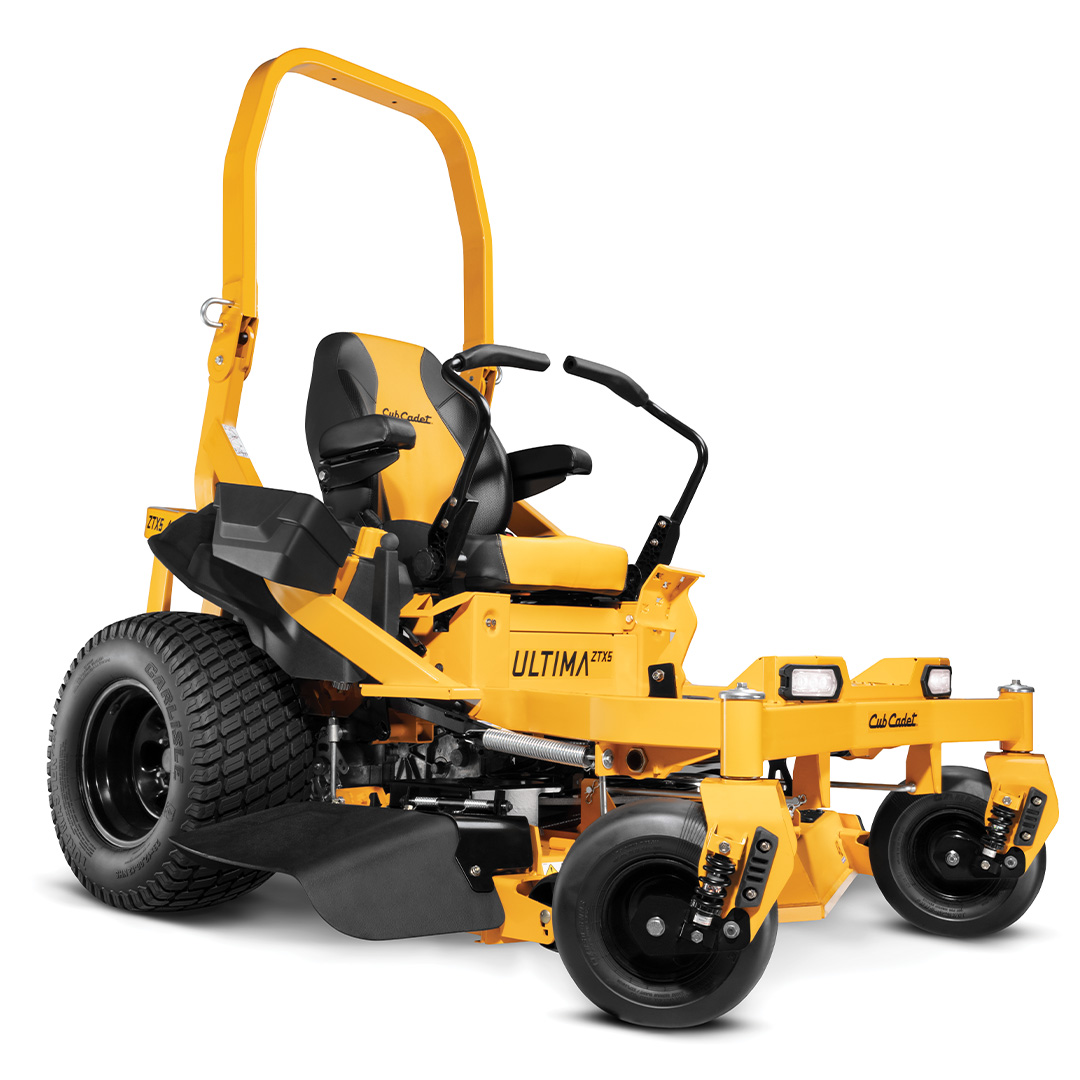

Ultima ZTX5 54

RRP $18,799.00

The Ultima series represents the cutting-edge evolution of zero-turn mowers.

Ensuring user comfort is a top priority, it comes equipped with numerous clever ergonomic features. The open rear design and convenient access to the belts and deck make ongoing maintenance a breeze.

  • 54-Inch Fabricated Cutting Deck
  • Roll Over Protection
  • 24HP Kawasaki V-Twin Engine
  • 2 Year Warranty
Find a Dealer

SKU: MT47AIAAA7330 Categories: ,


With its unique appearance and cutting-edge design, the next-generation Ultima ZTX5 54 stands out as a leader among zero-turn mowers.

Crafted with commercial-grade features, including a 54-inch 10-gauge steel fabricated deck, ROPS bar, and dual ZT 3200 transmissions, it is built for unrivaled durability and productivity.

User comfort takes precedence with a plethora of clever ergonomic features, such as a high-back comfort seat with armrests, rubber footrest, easy dial for deck height adjustment, and overmolded comfort lap bars, among others.

Enhanced with agile zero-turn maneuverability for maximum productivity and Cub Cadet’s renowned Aeroforce deck design, it achieves a best-in-class cutting finish.

The Ultima ZTX5 54 is exceptionally well-suited for a wide range of block sizes and various types of terrain, making it the ultimate zero-turn mower for any task!

Additional information

Weight 380 kg
Dimensions 215 × 143 cm
PTO Clutch Electronic Fingertip Engagement
Warranty 2 Year
Engine Model 24 HP Kawasaki V-Twin OHV
CC Rating 726
Start System Engine Start With Ignition Key
Blades Triple
Turning Radius Zero Turn
Speed 13.7 km/h
Fuel Tank Size 22.8 L
Additional Features Anti Scalp Wheels, Foot Operated Deck Lift, Easy Dial – Deck Height Control, High Back Comfort Seat, LED Headlights, Comfort Lever Steer Lap Bars, Roll Over Protection, Front Suspension, Enhanced Tr
Maximum Slope Gradient Up To 15 Degrees
Tow Hitch Yes
Catcher Kits - Side Discharge No
Drive System Hydro-Gear ZT 3200
Deck Construction Fabricated Steel
Mulch Function Optional
Power Petrol
Cutting Width 54 Inch
Cutting Height Range 17 Position Cutting Adjustment 25 – 121 mm
Catcher Size No
Spec Sheets Download
Operating Manuals Download
Specs Sheet Download
Operating Manuals Download
